We repair the power steering rack in several stages. We start with a preliminary diagnosis of the car using a scanner. Sometimes it is enough to change the fuse or properly fix the terminal on the generator to restore the unit's performance.
If the diagnostics show that the problem is serious, we dismantle the pump for the purpose of defecting it. First, we wash it and clean it in a sandblaster.
After the diagnosis, the pump is dismantled.
Next is disassembly with the removal of the tank neck (also known as the top cover) and the pumping element. Depending on the pump model, both can be dismantled in different ways. Note that this is only the first of many nuances that are often known only to specialists. Therefore, we strongly recommend that you do not repair the electric power steering pump yourself or entrust it to unqualified mechanics.
Next, remove the bottom cover of the pump and rotor. This provides a view of the stator winding and control electronics.
Next, dismantle the pump's electronic unit, diagnose it and, if necessary, restore it.
Assemble the lower part in the reverse order and proceed to the analysis of the components of the swing mechanism. Restore them using the parts of the repair kit.
All the components of the tilt mechanism are assembled in the opposite order.

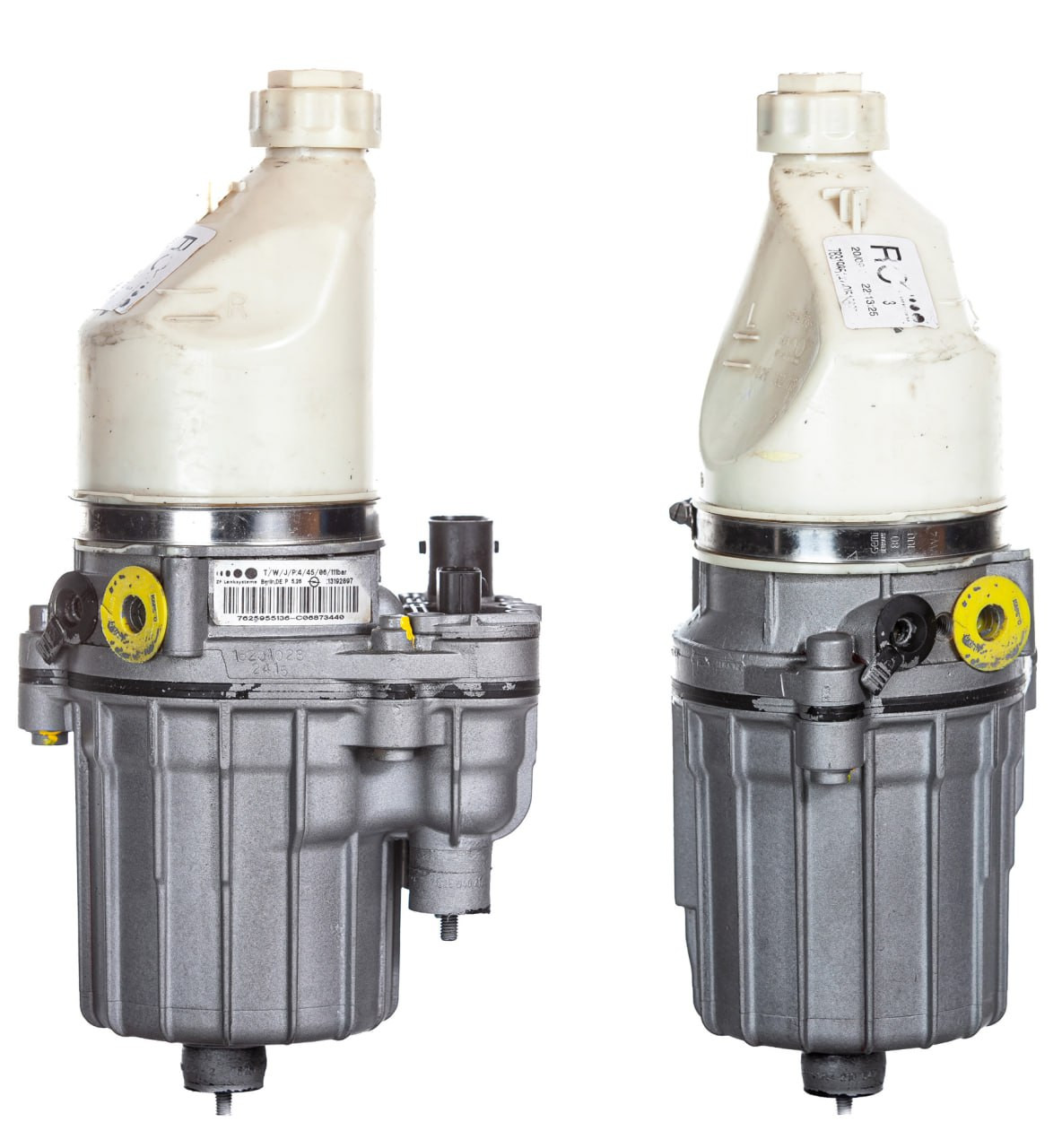

Assemble the electric hydraulic booster pump, paint the body and test it on the bench. It should deliver a pressure of 110 bar.
And the test of the pump.
Installation of the unit on the car.
If for some reason it turns out that the pump is not repairable, we will install a refurbished unit from our large exchange fund. One way or another, STS.Parts customers will receive a refurbished steering rack that will be in no way inferior to the original part, and in terms of further maintainability, it will even surpass it. And this is at a much lower price.
